Name: 75 Litre Bass Enclosure for 12 Inch Sub
Brand: Fredo Speakers - Sound Magic
SKU: MDF12in-75L
Price: 6372.00 INR
Availability: InStock

75 Litre Bass Enclosure for 12 Inch Sub

Rs. 6,372.00

Rs. 6,372.00 Rs. 12,900.00

75 Litre Bass Enclosure for 12 Inch Sub

Rs. 6,372.00

Rs. 6,372.00 Rs. 12,900.00

Product Specifications :-

External Dimensions :-

Width - 54 cm (21.25 inch)

Height - 40 cm (15.74 inch)

Depth - 35 cm (13.77 inch)

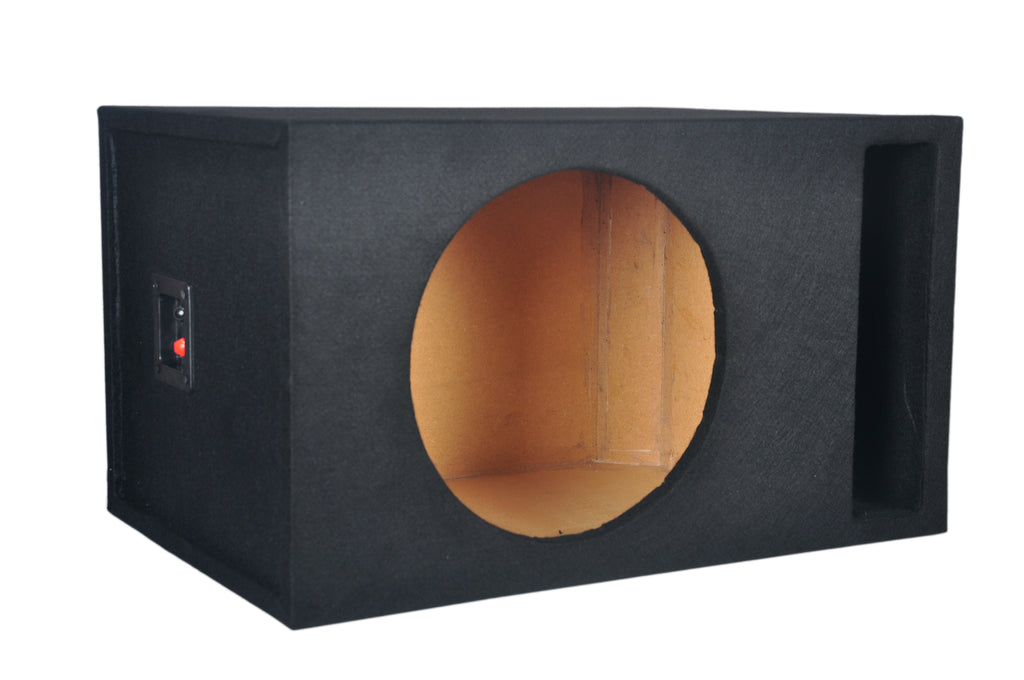

L-Port Type Enclosure

Weight - 12.23 Kg

Enclosure Type - Ported

Use - For 12 inch Double Magnet subwoofers

Link Link

Material / Thickness - MDF / 15 mm to 18 mm

Covering Material - Thick & Durable Autograde fabric

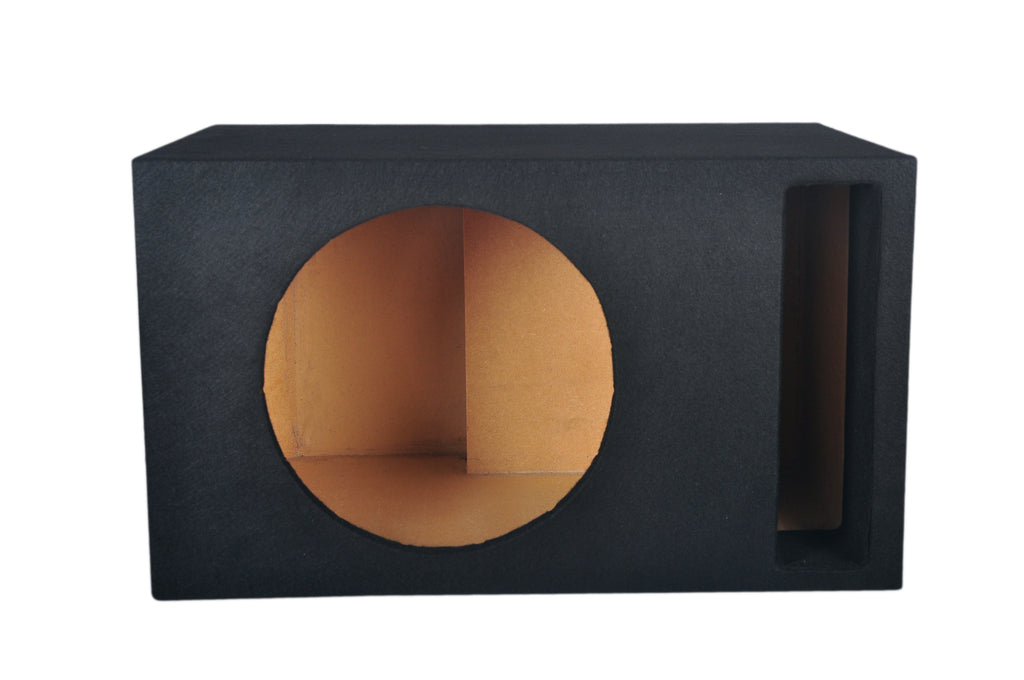

Tuning Slot Type/Frequency - L Port / 25 Hz

Slot Depth - 31.5 cm (12.25 inch)

Slot Width - 7.6 cm (3 inch)

Tuned Volume - 75 Litres (2.64 Cubic foot)

Subwoofer Fitting Hole Dia - 28.5 cm (11.25 inch)

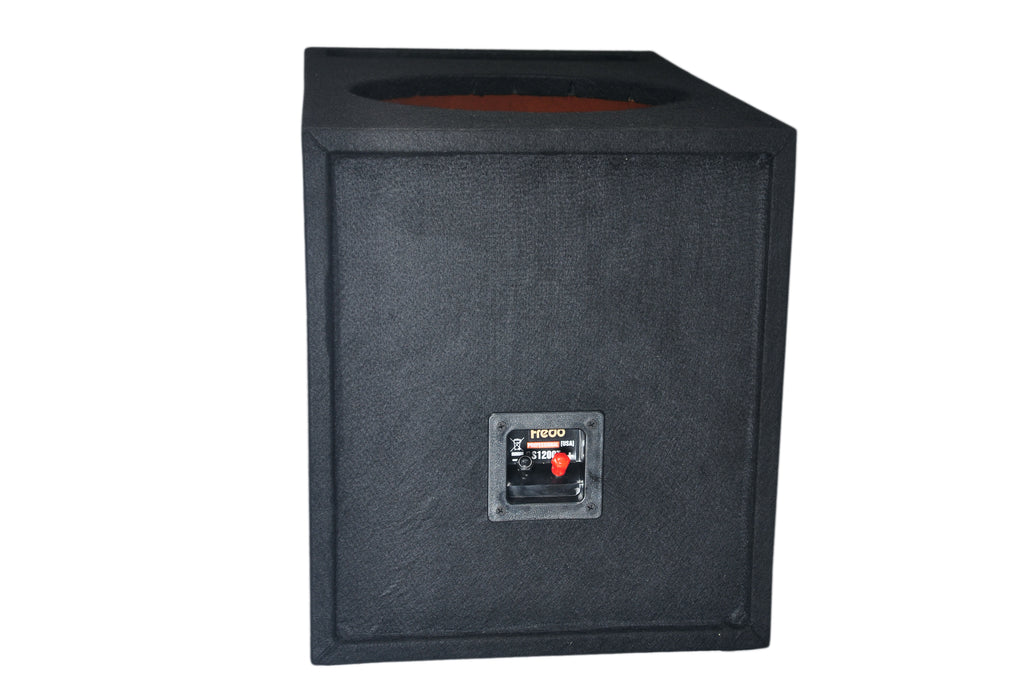

External Connections :-

4 Binding posts (Push fit, Steel) for Dual Coil Subwoofer fitting.

Dual Coil Subwoofer connections :-

Make Series / Parallel / Single Coil connections on 4 Binding Posts, external to the Enclosure

Recommended Installation of Subwoofer :-

Inverted / Subwoofer out of the box / Magnet side out - utilize full air volume of enclosure

Warranty - 1 year/7 days replacement.

A few facts about L-Port Tuning :-

Yes we know it, and our approach is honest, straightforward & cost effective.......

The basic science of L port enclosures:-

1. The box volume has to match subwoofer Fs accurately.

2 The L port thickness & length has to make a perfect resonance air chamber to give that desired and accurate bass.

The problems :-

1. Every sound recording will need a different set up of above 2 air chambers.

2. The length of the L port is constant. (Tuning can't be changed)

3. An automatic DSP (digital signal processing) unit is required for auto bass tuning.

4. Perfect air plugs are needed to alter port characteristics.

All that comes at a considerable cost.

Our solution:-

1. A manual amplifier tuning can be better than Digital tuning. A professional AV receiver can be more cost effective here.

2 We are offering a basic enclosure design, which comes very close to most subwoofers, available in market today.

3. Use winisd for box volume tuning/calculations and compare with Fredo bass enclosure design. We are pretty sure, the calculation will not be far away from what is required.

Geek Parameters :-

Use Winisd with following data:-

12 inch - 75 Litre Bass Enclosure Characteristics:-

Box external dimensions 54(Width) x 40(Height) x 35(Depth) cms.

External volume 75.6Litres (2.66 cubic feet)

Compensating for 18mm wall thickness 50.4 x 36.4 x 31.4 cms.

Compensated volume 57.6L

L port length compensated for 18mm wall thickness, top and bottom, 35-3.6 = 31.4cm = 12.3inch.

L port width 3 inch

Following Subwoofer parameters may be required to get tuning frequency parameters:-

Subwoofer Fs - Driver displacement - Qts - Vas - L port width (3in)

Driver displacement = 3.14 x square of (Effective Cone Diameter/2) x Mounting Depth/3
