Fredo10-Inch Double Magnet Subwoofer - 4 Ohms/RMS 125W
Fredo10-Inch Double Magnet Subwoofer - 4 Ohms/RMS 125W
Product Specifications :-
Diameter - 25.5 cm (10 inch)
Height 14.2 cm (5.61 Inch)
Weight - 3.4 Kgs
Use - Car/Studio/Home Audio
Driver Type - Double magnet Subwoofer
Chassis Material - Stamped CR steel, powder coated.
Heavier Chassis for Bass
Cone Material - Non pressed paper. Stitched cone.
Stitched Paper Cone
Voice coil Material - Pure copper, resistive to high temperatures. Diameter 1.5 inch. Winding 4 Layer.
4 Layer Voice Coil
Magnet Material - Y30 grade double ferrite. Outer Dia 120 mm. Inner Dia 57 mm and Thickness 40 mm.
Double Magnet
Packing Material - Wood.
Warranty - 1 year / 7 days replacement.
Power Ratings :-
Impedance - 4 Ohms
Nominal Power - 175 W
Peak/Shorting Power - 875 W
RMS Power - Nominal Power (175) x 0.707 = 125 W
TS Parameters Electrical :-
Q mechanical - 6.01
Q electrical - 0.62
Q total - 0.56
Resonance Frequency - 27 Hz
X Max - 12.6 mm
BL, motor strength - 13.41 Tesla meter
SPL (2.83V @ 1 meter) - 89 dB
TS Parameters Mechanical :-
Voice coil Dia - 50 mm (with winding)
Voice coil layers - 4
VC material & gauge - Copper 36 gauge
VC cylinder - Kapton paper of 40 mm dia
Surround Material - Rubber/Extra large foam for bass
Top foam ring height - 8.7 mm
Connections :-
Push Fit Steel Terminals
Recommended Amplifier :-
Circuit board of STK 4191 with 24-0-24 V at 5 Ampere
Ahuja SSA 250dp
Interfire 7000d.
Recommended Box volume :-
L Port type with 54 liter volume (1.91 cubic feet)

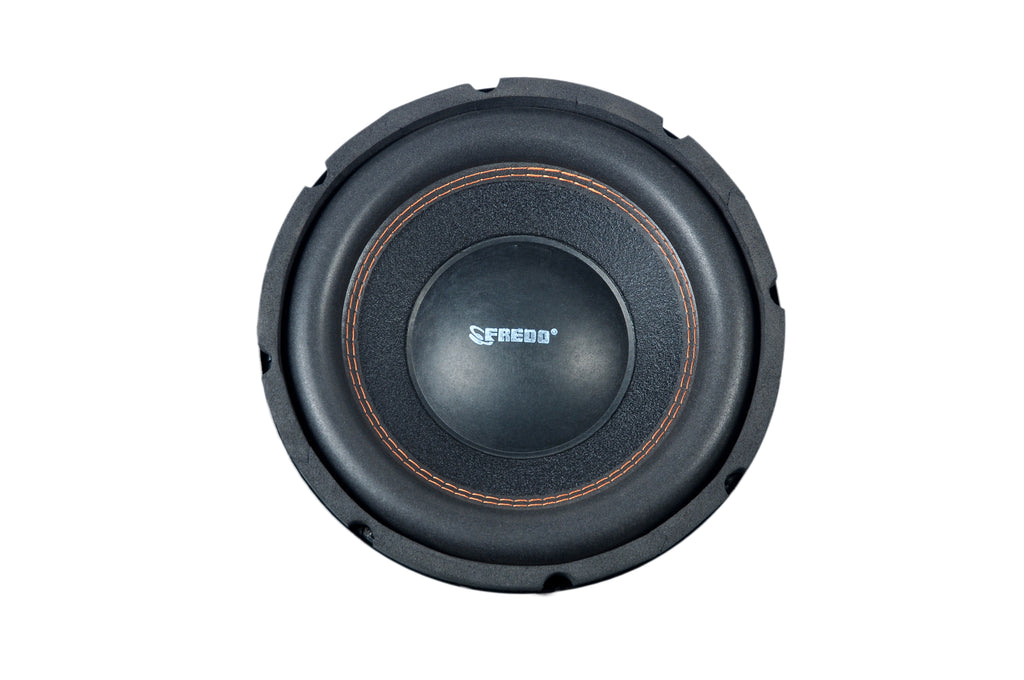

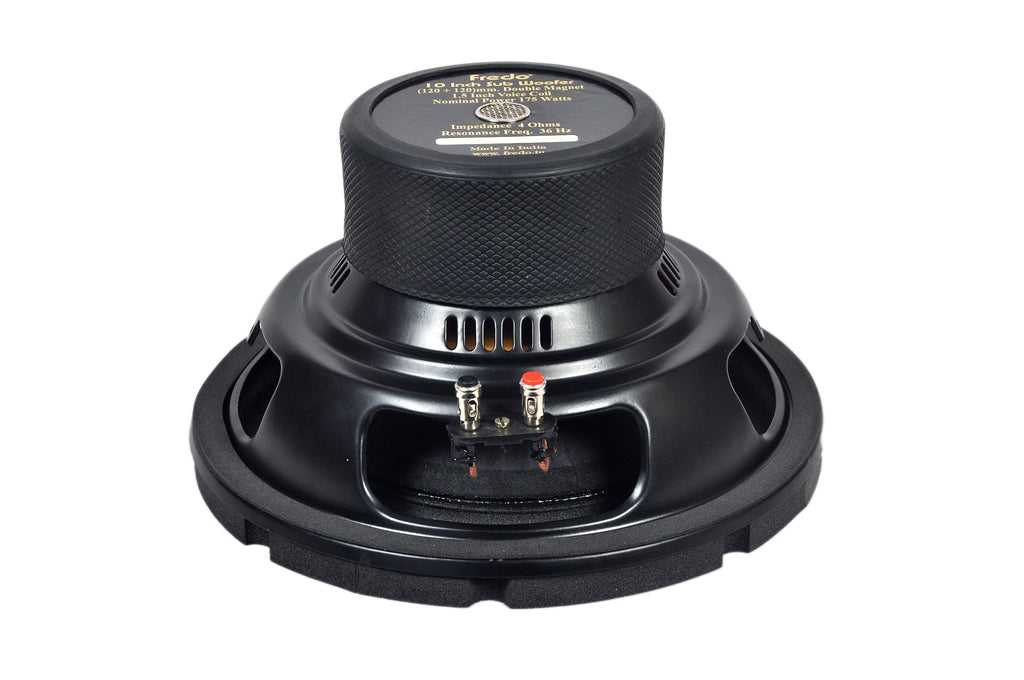

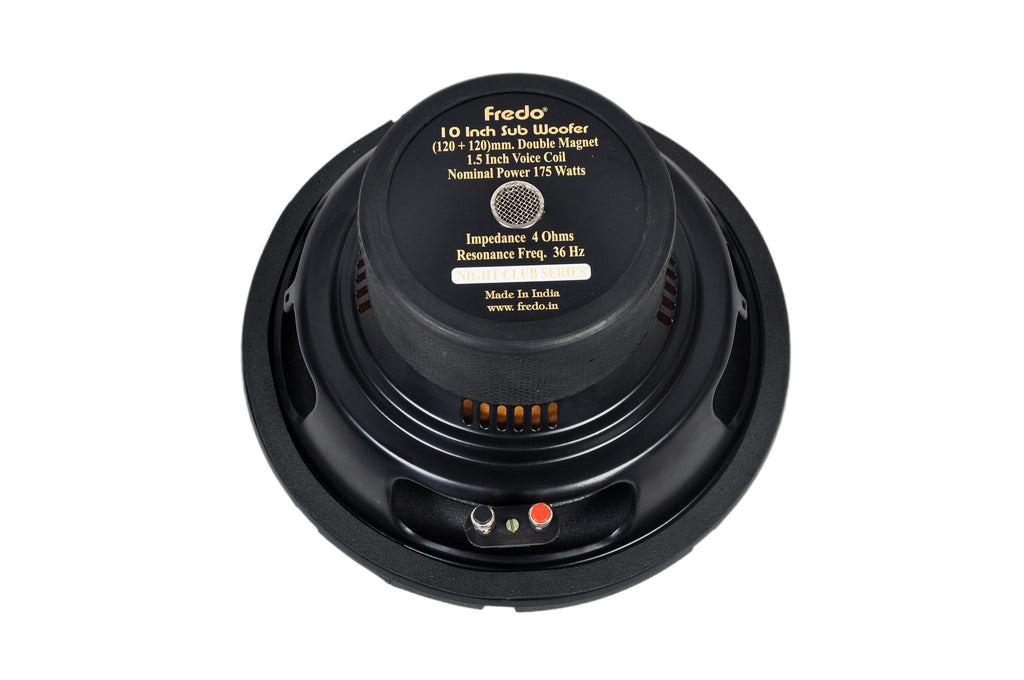

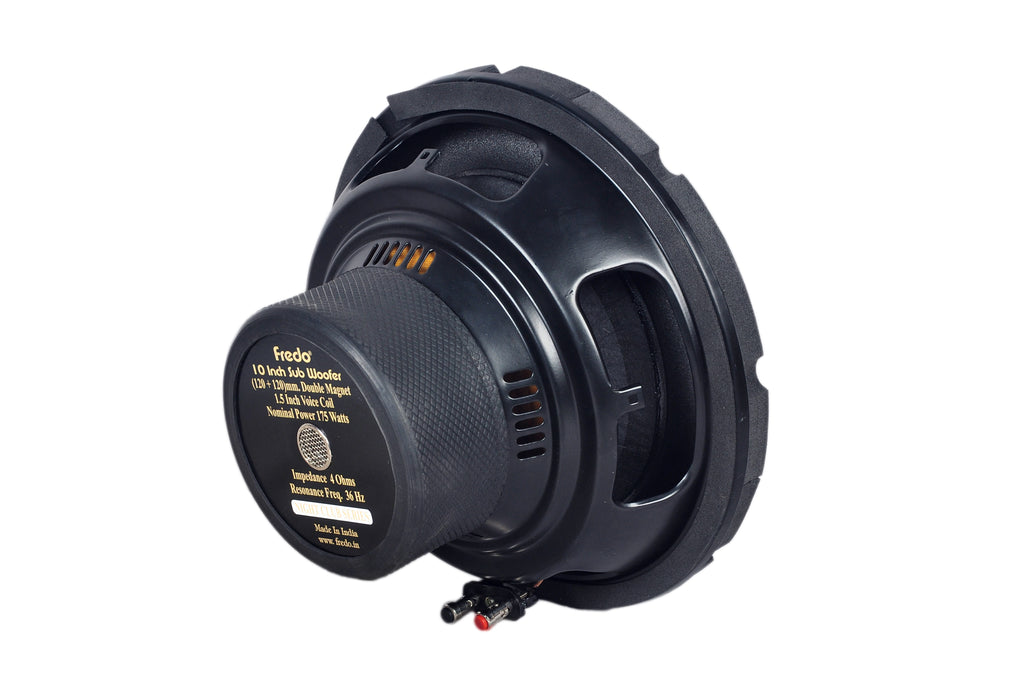

Product Pictures :-
